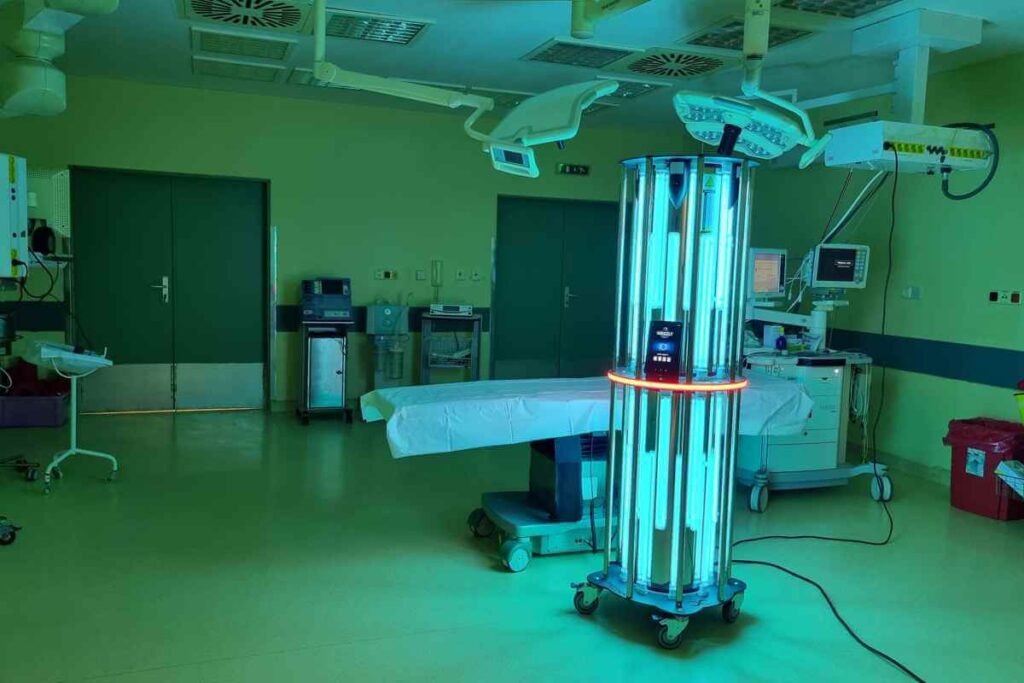

Disinfection device - SPECTRA Infinity
0
%
Area disinfection
0
%
Air disinfection
0
%
In shaded areas

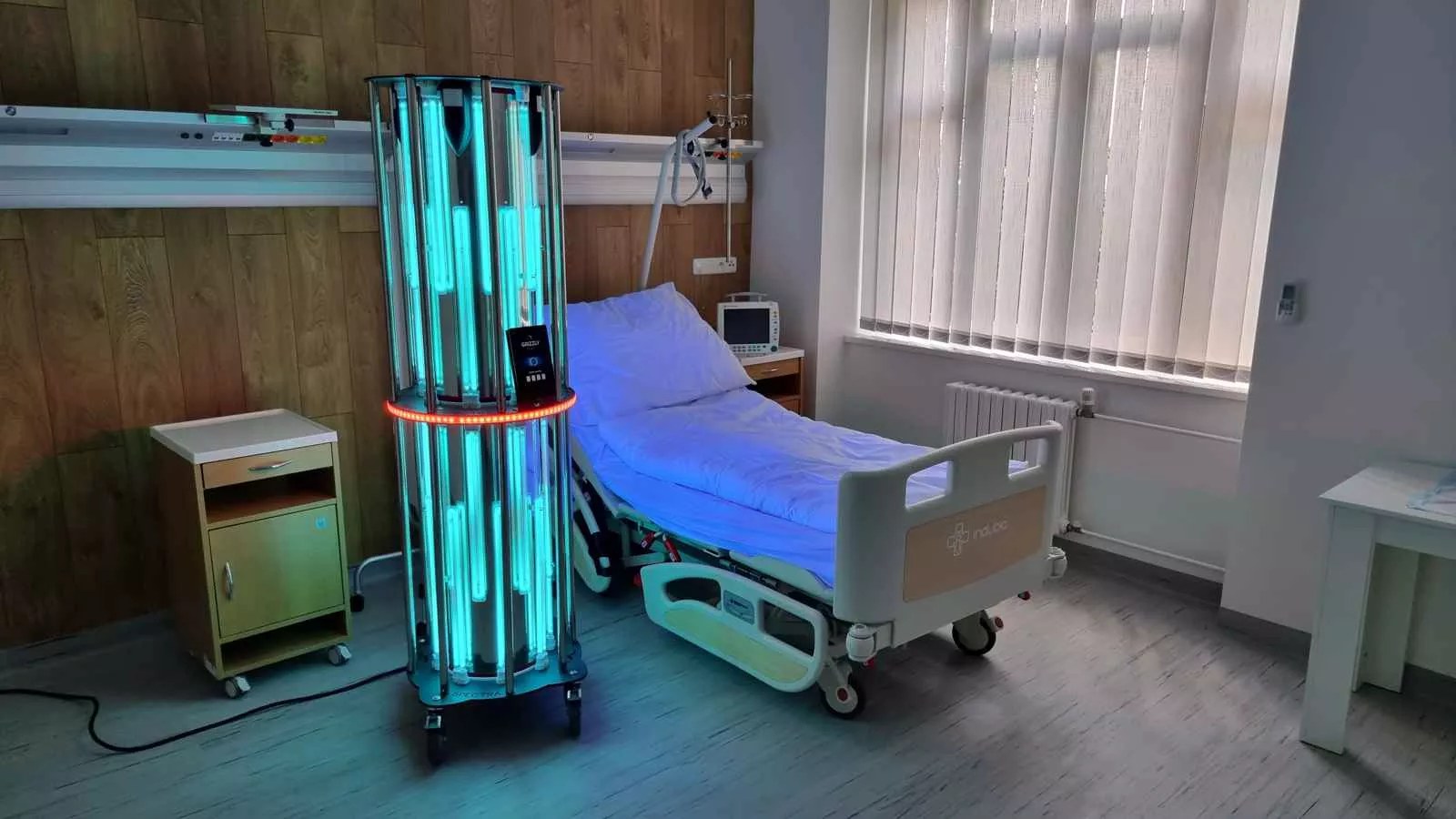

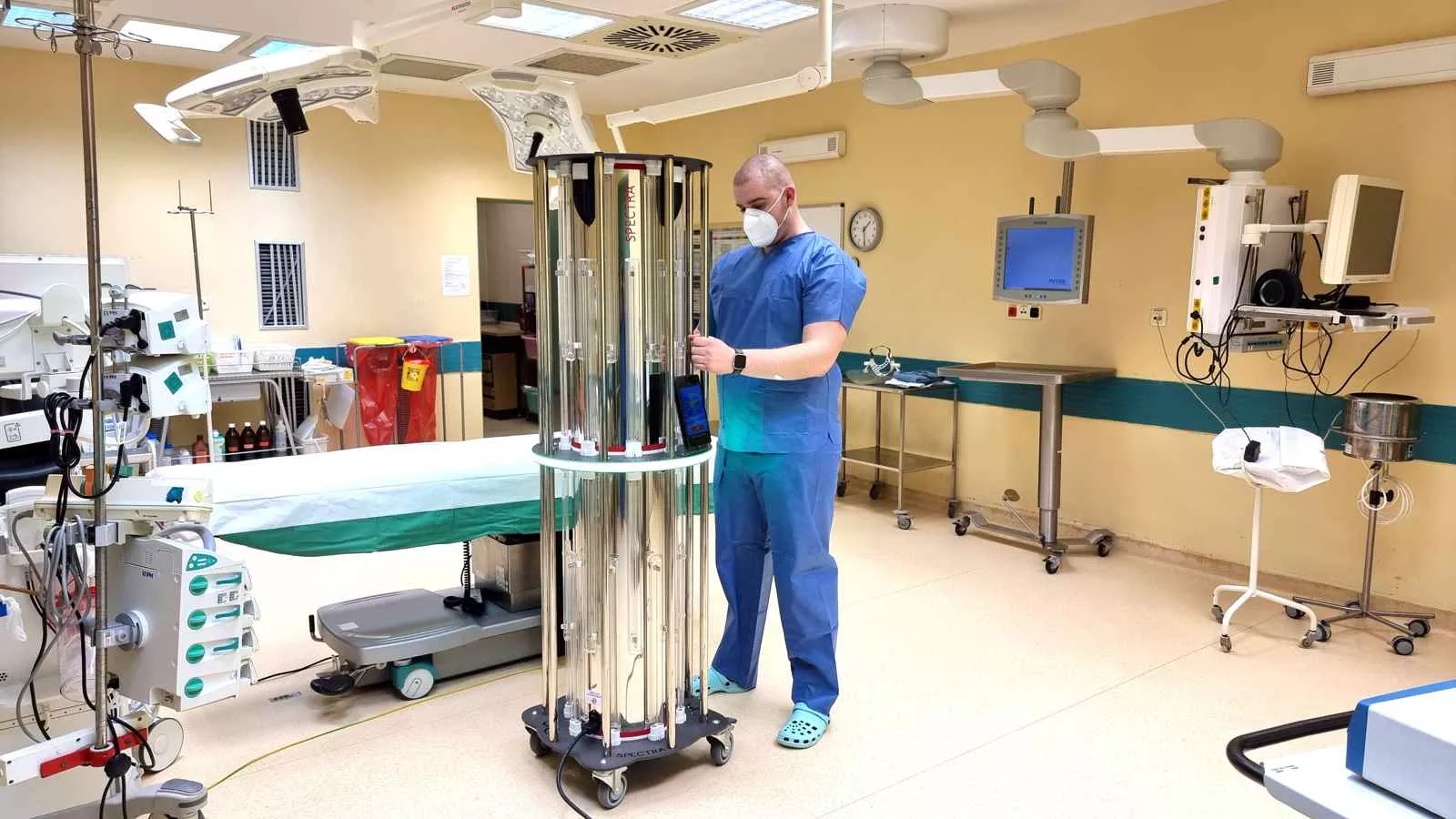

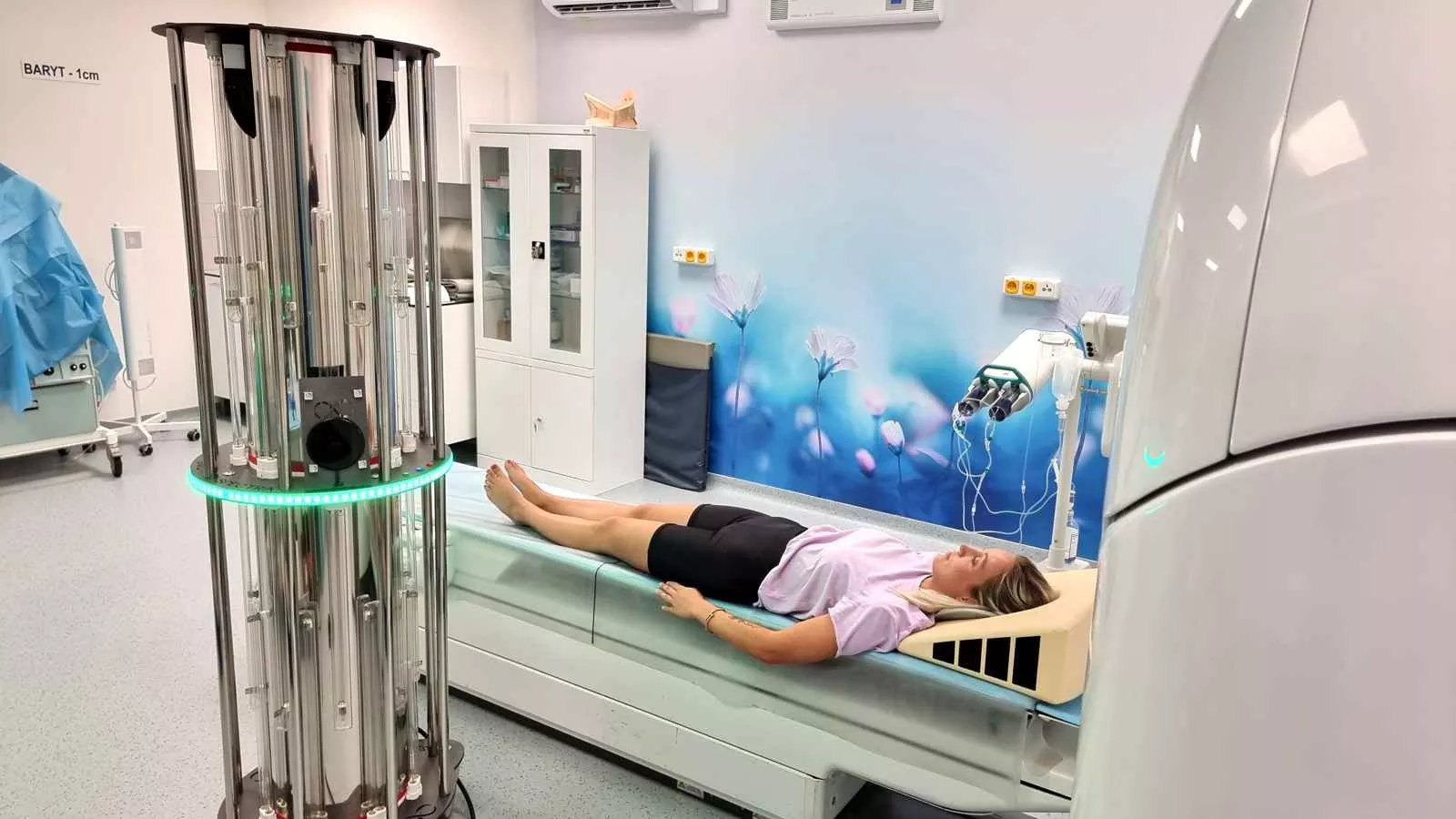

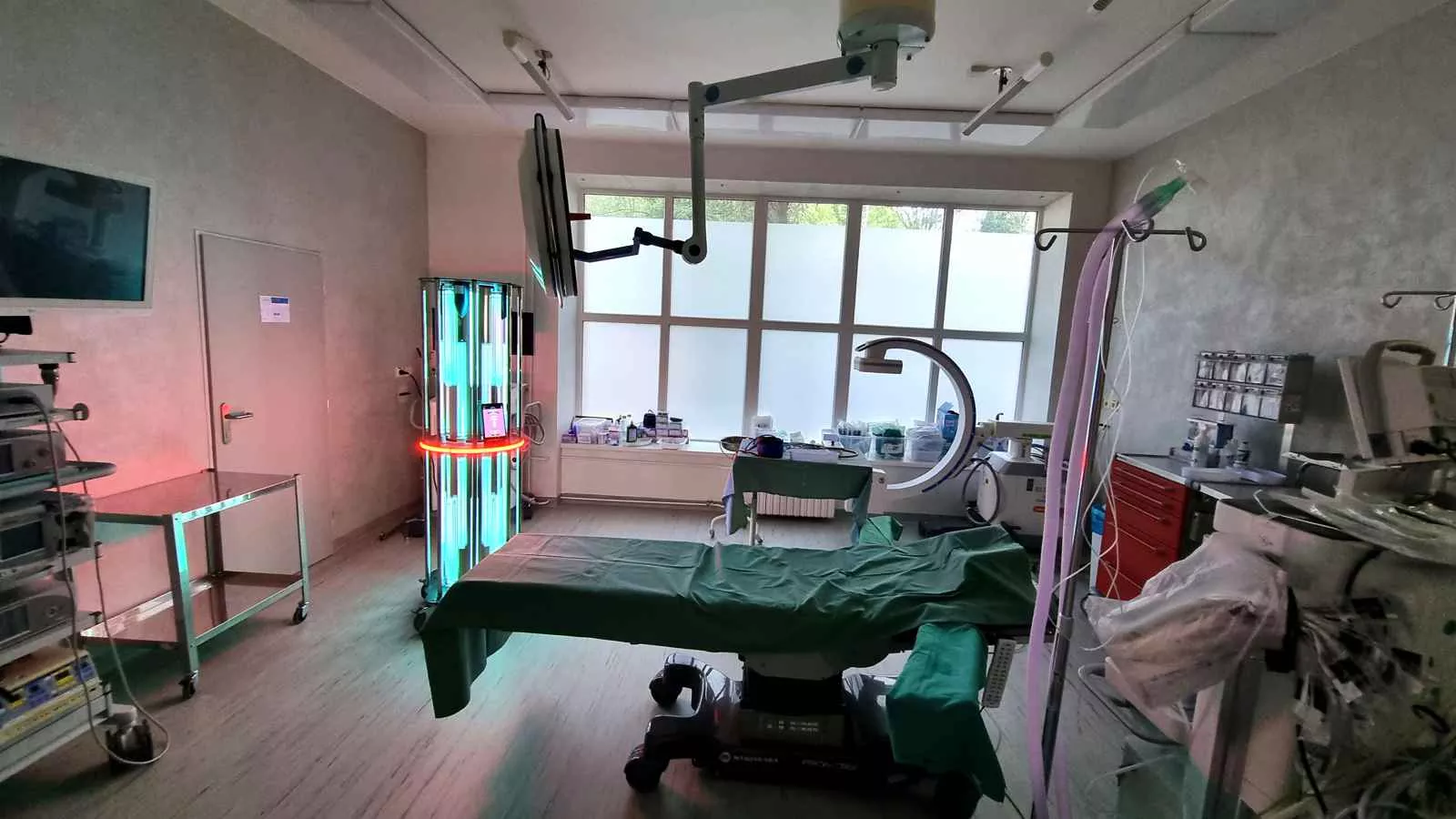

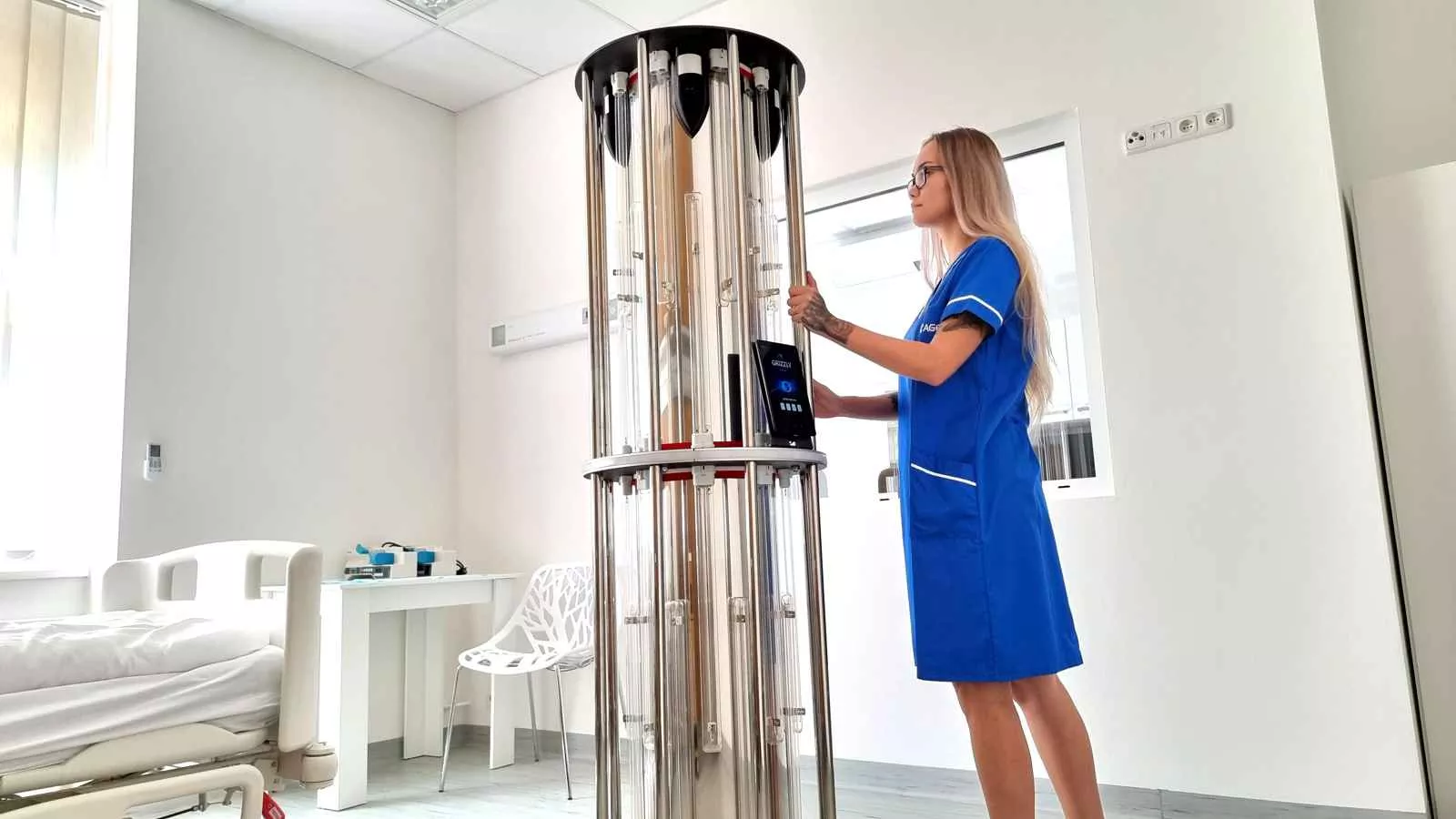

The Most Advanced Mobile Disinfection System on the Market

SPECTRA Infinity represents the technological pinnacle of professional, chemical-free disinfection. Designed for hospitals, clinics, laboratories, and high-risk environments, it sets a new benchmark in infection control, operational efficiency, and safety.

This is not just another UVC device.
 It is a fully integrated, multi-technology decontamination system engineered to deliver uncompromising performance.

Triple Technology. Absolute Coverage. Zero Compromise

SPECTRA Infinity integrates:

SPECTRA Infinity uniquely combines three of the most powerful disinfection technologies into a single intelligent platform:

  • High-output 360° open UVC radiation
  • Closed germicidal air-flow system for safe operation in occupied spaces
  • Professional ozone generator with output up to 80,000 mg/h

This advanced combination enables true shadow-free disinfection, effectively penetrating hard-to-reach areas, textiles, complex surfaces, and undersides of furniture – areas where conventional UVC systems fail.

Unmatched Performance

At the core of the system:

  • Total UVC output: 1,760 W
  • 360° radiation coverage around the entire perimeter
  • Ozone output: up to 80,000 mg per hour
  • Integrated high-capacity fan: 1,320 m³/h airflow

The result is rapid, deep, and uniform space decontamination with significantly reduced room turnaround time between patients or procedures.

SPECTRA Infinity replaces multiple standalone technologies with one comprehensive, high-performance solution.

Next-Generation Safety

Advanced safety sensors instantly deactivate external UVC tubes upon motion detection.

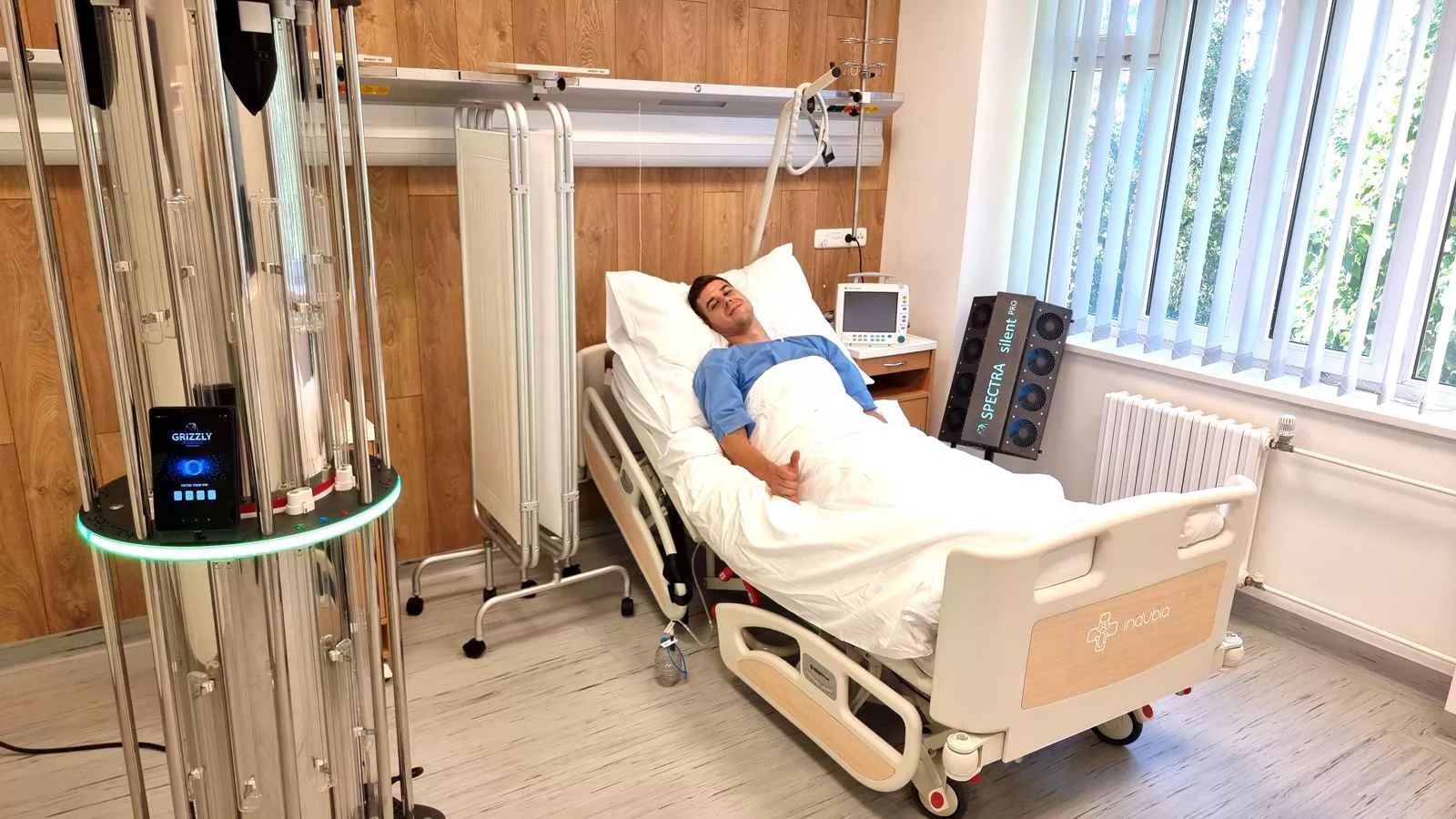

When people are present, the device can be switched to closed germicidal air-flow mode, ensuring continuous air disinfection without exposing staff or patients to direct UVC radiation.

This enables safe operation even during working hours — minimizing downtime while maximizing protection.

Intelligent Automation and Control

SPECTRA Infinity integrates LiDAR technology to automatically calculate optimal disinfection time based on room dimensions. This eliminates guesswork and ensures precise, standardized cycles.

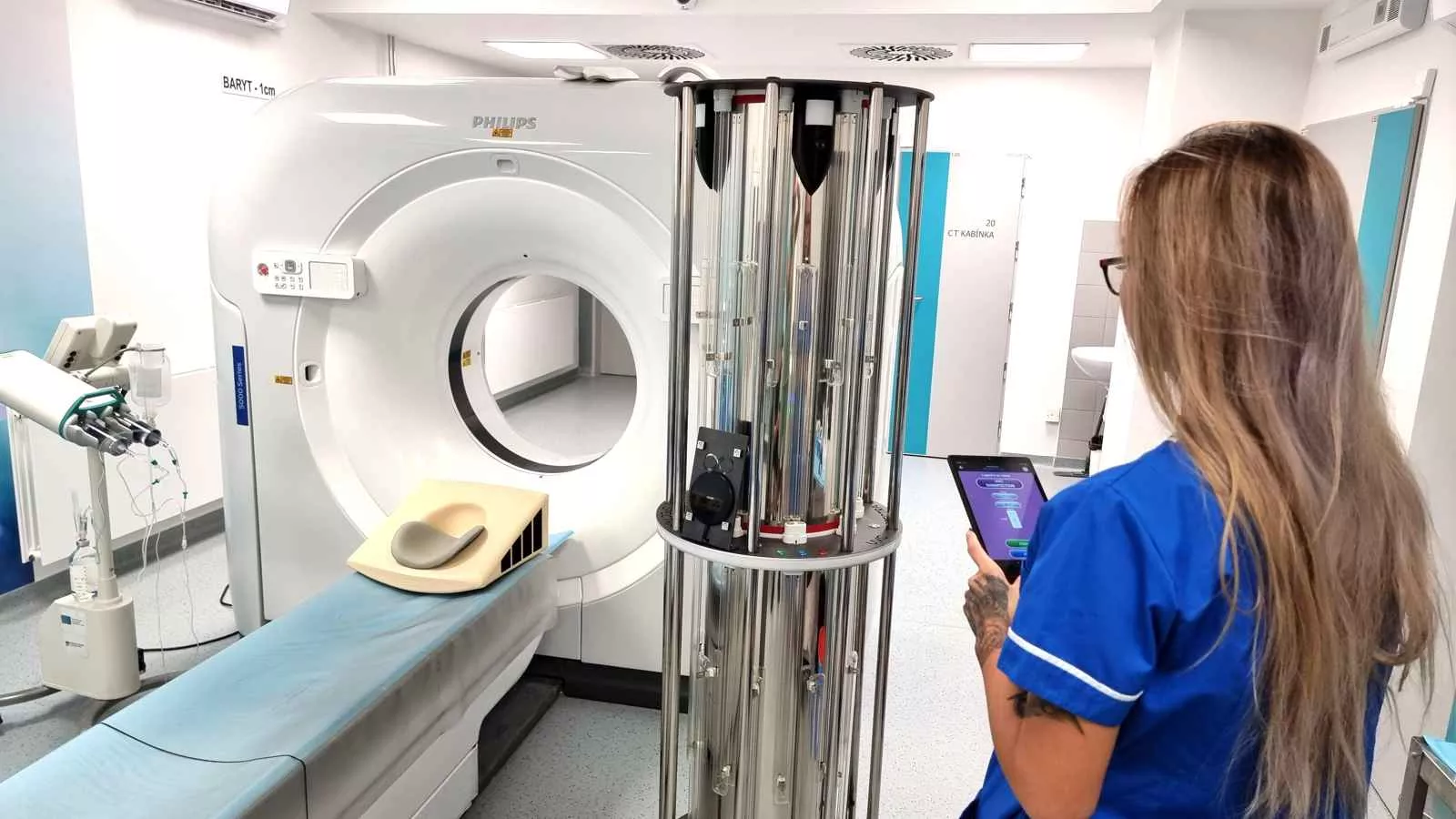

The system is controlled via a supplied tablet with an intuitive application that provides:

  • Full real-time process control
  • User and disinfection history tracking
  • Operational monitoring
  • Automatic malfunction alerts

Multiple units can be centrally managed from a single interface, making it ideal for large healthcare facilities.

Built for Professional Deployment

The entire structure is constructed from high-quality AISI 304 stainless steel, ensuring durability, hygienic integrity, and long-term resistance in demanding clinical environments.

The mobile chassis with lockable wheels allows effortless movement between rooms without complex handling.

Why SPECTRA Infinity Leads the Market

✔ Three integrated disinfection technologies in one system
✔ True shadow-free disinfection
✔ Extreme ozone output: 80,000 mg/h
✔ Full 360° UVC coverage
✔ Safe operation in occupied environments
✔ Intelligent LiDAR-based automation
✔ Centralized control capability
✔ Premium AISI 304 stainless steel construction
✔ Designed for the most demanding healthcare applications

SPECTRA Infinity is not an alternative to standard disinfection systems.
It defines the new standard.

Technology Overview
  1. Open Germicidal Radiator – 1,760 W output (360° radiation)
  2. Closed Germicidal Air-Flow Radiator – 440 W output with 1,320 m³/h fan
  3. Ozone Generator – 80,000 mg/h output with 1,320 m³/h fan

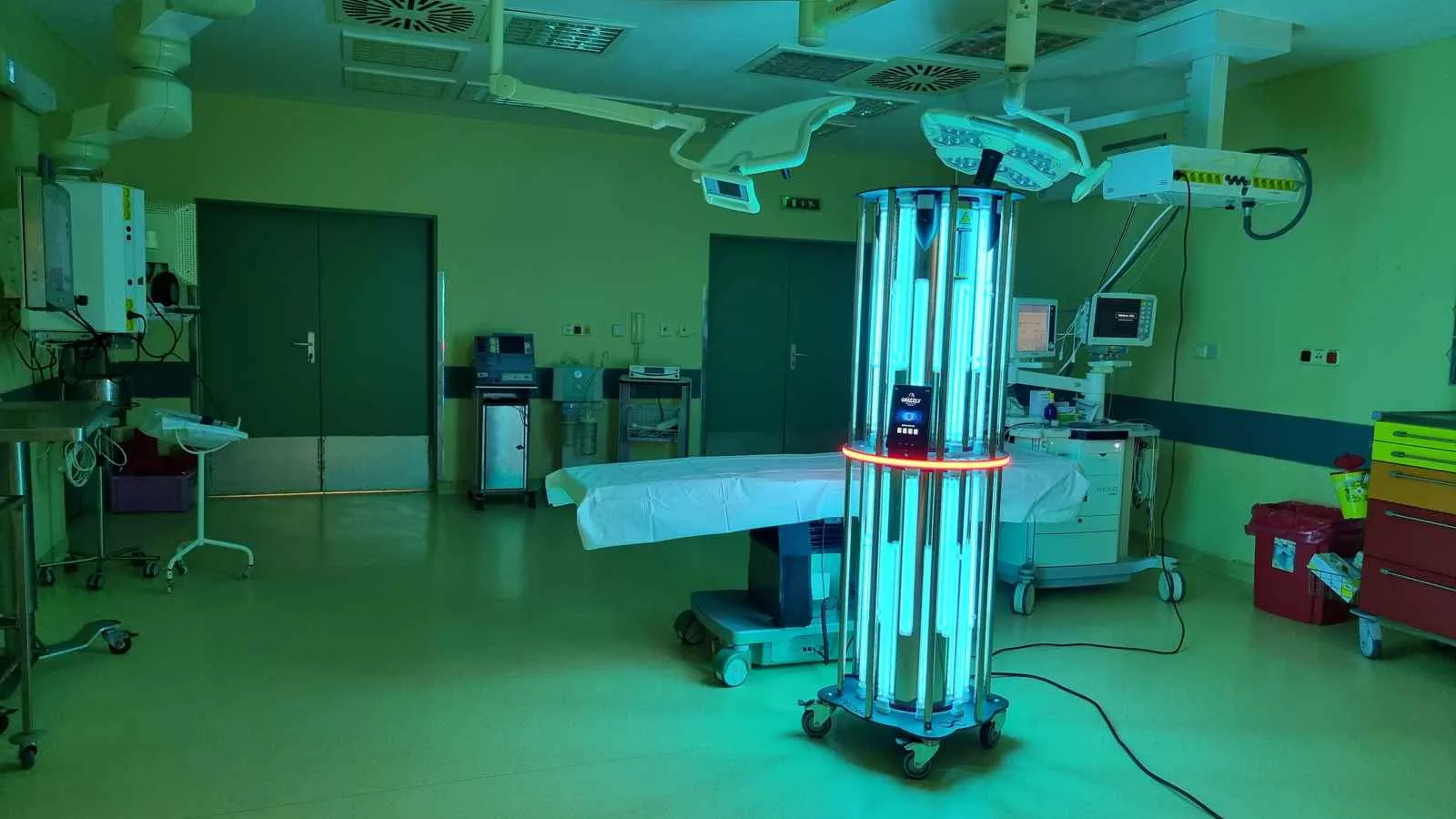

The device can disinfect the desired area using germicidal radiation in a very short time.

In rooms with multiple obstacles that may create shadowed areas, an additional ozone disinfection mode can be activated to ensure complete disinfection of the entire room, including all surfaces, textiles, and hard-to-reach areas.

When people are present, the device can be switched to air-flow germicidal mode to maintain a safe environment.

The system is equipped with safety sensors that deactivate external UVC tubes if motion is detected.

The supplied tablet ensures full control of the device. The application offers multiple operational modes, timer settings, and control functions. Multiple units can also be centrally managed from a single location.

The entire device is constructed from high-quality AISI 304 stainless steel.

The unit is easily movable thanks to lockable wheels that prevent unintended movement.

Technical Specifications

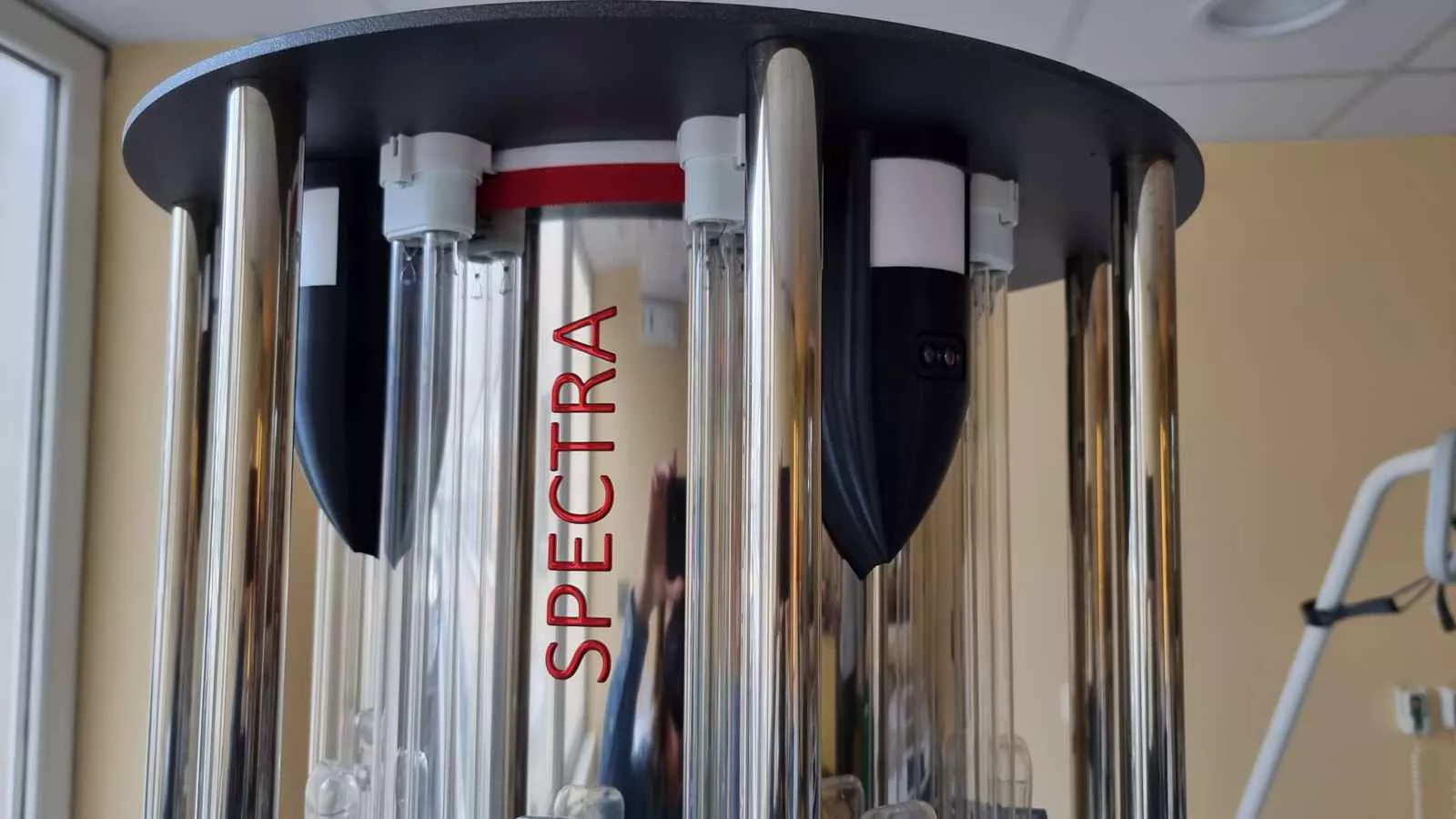

Open UVC System

  • Germicidal output: 1,760 W
  • Lamp type: Philips PL-L 55 2G11 or OSRAM HNS 55 2G11
  • Number of lamps: 32
  • High-quality ballasts with lamp lifespan up to 20,000 hours

Air-Flow UVC System

  • Internal germicidal output: 440 W
  • Lamp type: Philips PL-L 55 2G11 or OSRAM HNS 55 2G11
  • Number of lamps: 8
  • High-quality ballasts with lamp lifespan up to 20,000 hours
  • Fan: SPAL, 1,320 m³/h capacity (58 dB), with speed regulation

Ozone Disinfection System

(Up to 99.9% reduction of shadowed areas compared to UVC alone)

  • Ozone generator output: 80,000 mg/h (80 g/h)
  • Ceramic ozone plates: 16
  • Lifespan: approx. 8,000 hours

Fan: SPAL, 1,320 m³/h capacity (58 dB)

General Parameters
  • Power supply: 230 V / 50 Hz
  • IP rating: IP20
  • Control: via supplied tablet
  • Safety: 4× PIR sensors for 360° motion detection
    (automatically deactivates external UVC tubes upon motion detection)
  • Maximum combined germicidal output: 2,200 W
  • Radiation wavelength: 253.7 nm
  • Radiation angle: 360°
  • Weight: 76 kg
  • Height: 185 cm
  • Base diameter: 50 cm
  • Device type: Mobile unit with lockable wheels
  • Acoustic and optical signaling during disinfection
  • Color signaling of active disinfection mode
  • Safety siren: 58 dB (with deactivation option)
  • Built-in digital ozone sensor
  • Suitable for spaces up to 200 m²
  • Material: AISI 304 stainless steel
Share

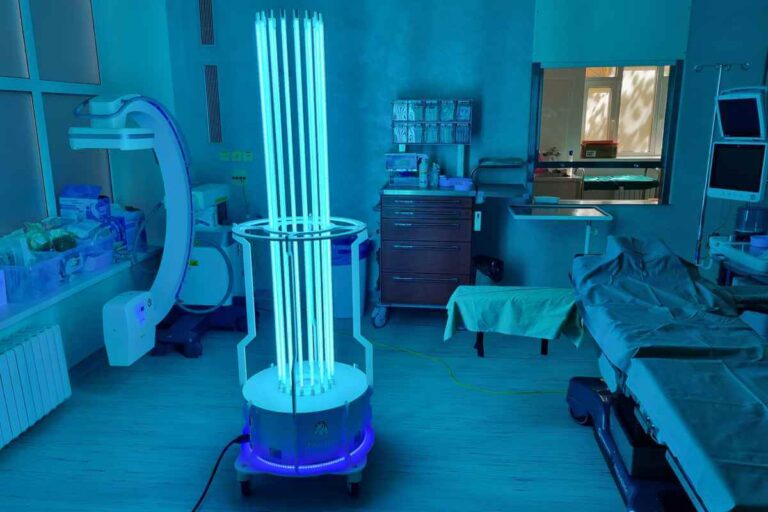

Other Disinfection Devices
